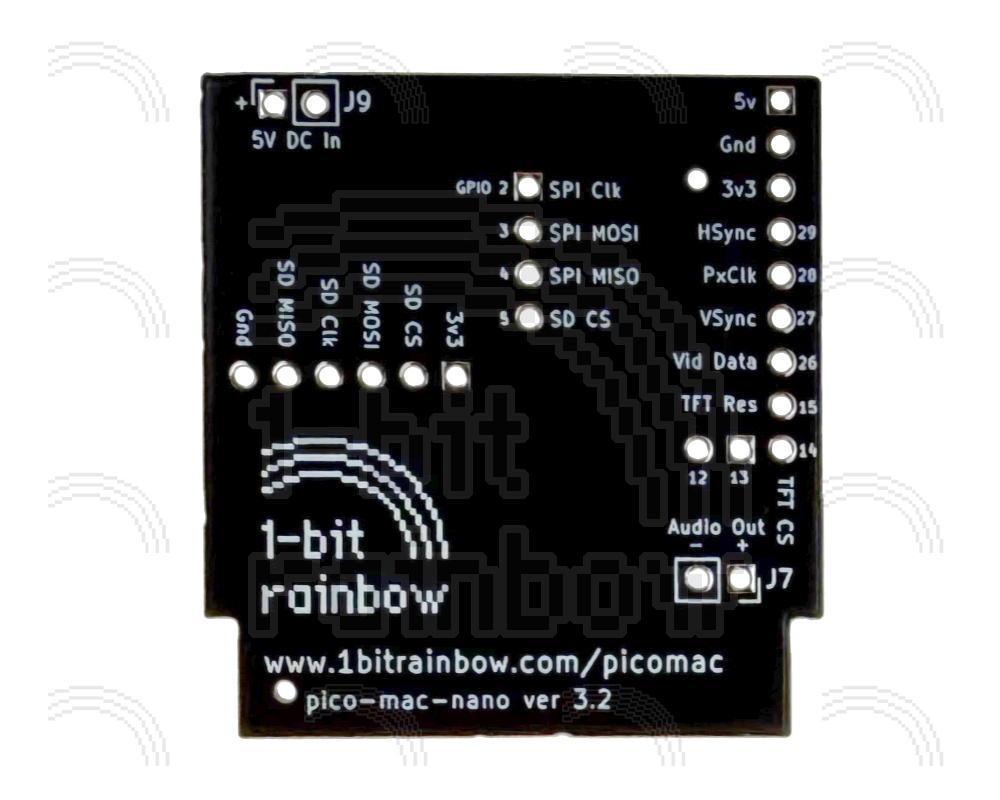

Custom designed printed circuit board version 3.2 (functionally identical to v3.4) for the 1-bit rainbow pico-mac-nano implementation of the open source pico-mac project. All surface mount components are pre-soldered and all headers included but you need to solder these on yourself.

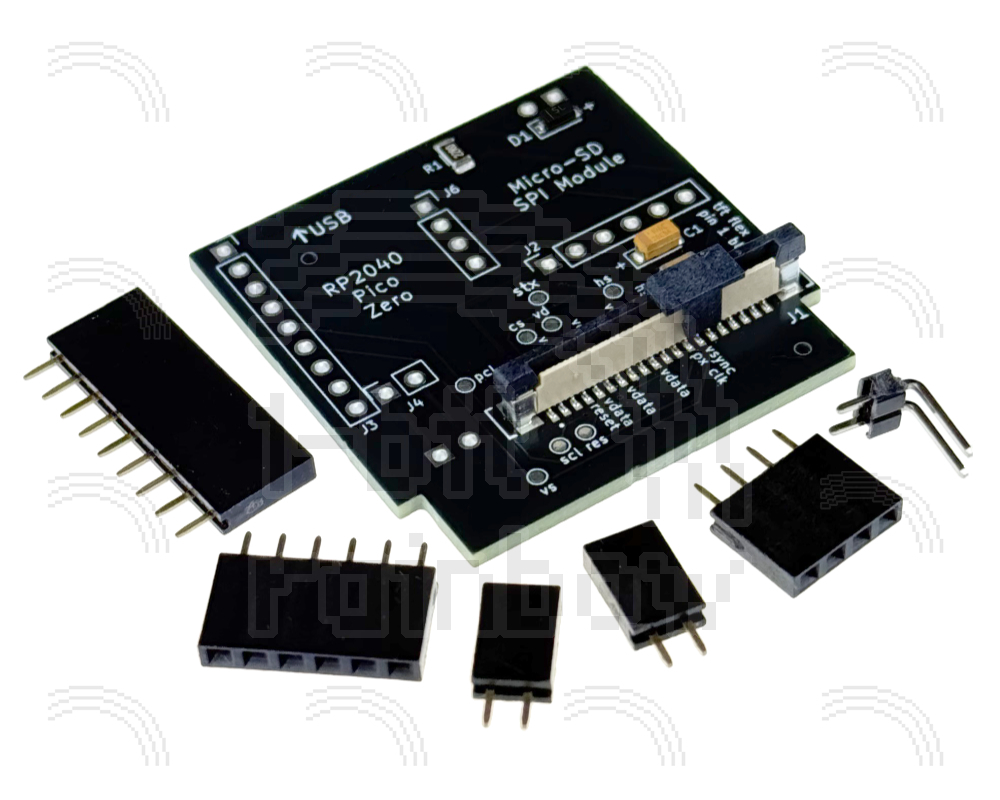

This board fits within the 62mm high replica Macintosh case and connects the Pico Zero, SPI micro-SD card module, and 2" TFT LCD panel together. It includes all surface mount components (pre-soldered), header sockets and connections for planned audio and battery modules.
The only difference between v3.2 and v3.4 is that we ordered v3.4 with the headers pro-soldered so the PCB itself is identical to v3.2.

The Pico Zero, SD card reader and LCD panel are not included. The board may vary from the photo as revisions are made.

The gerber files are freely available on the pico-mac-nano github page if you wish to have this board manufactured for yourself (personal use only - not for resale).
